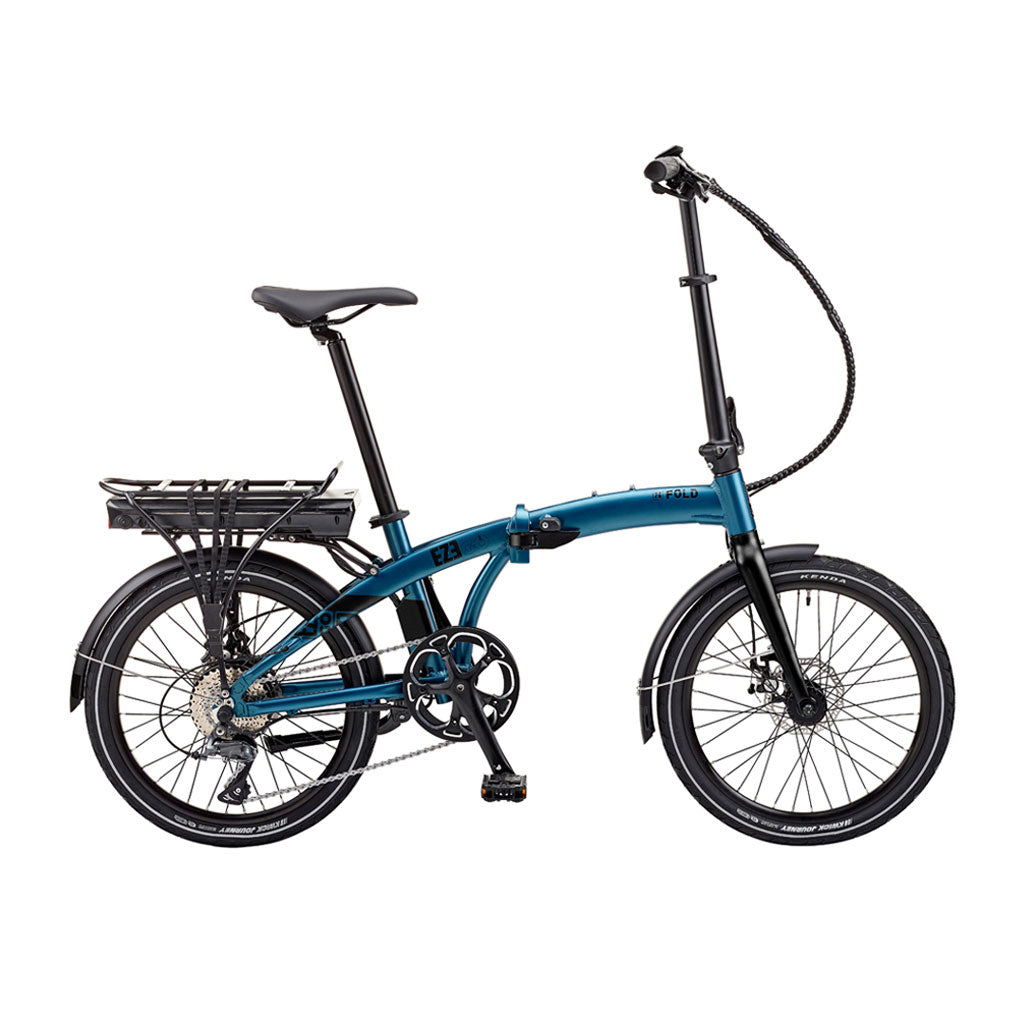

Ezego Fold Commuter Electric Bike

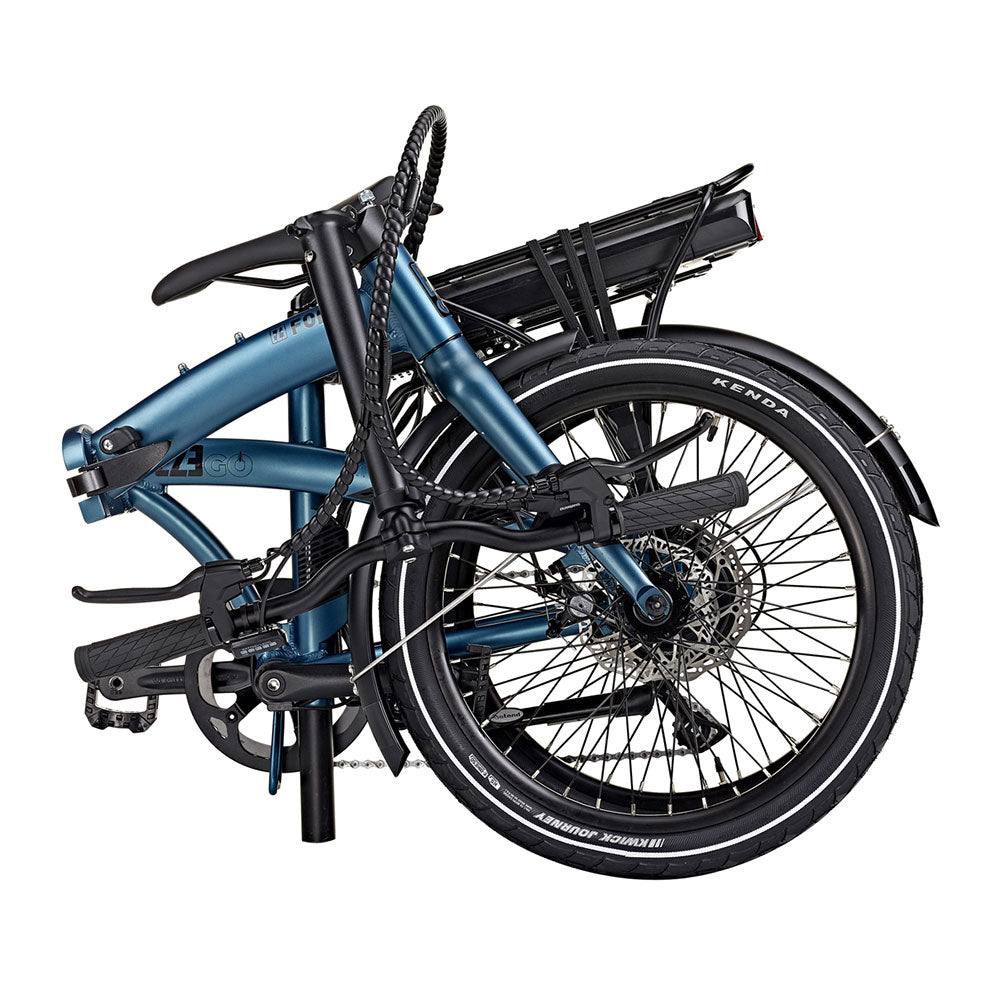

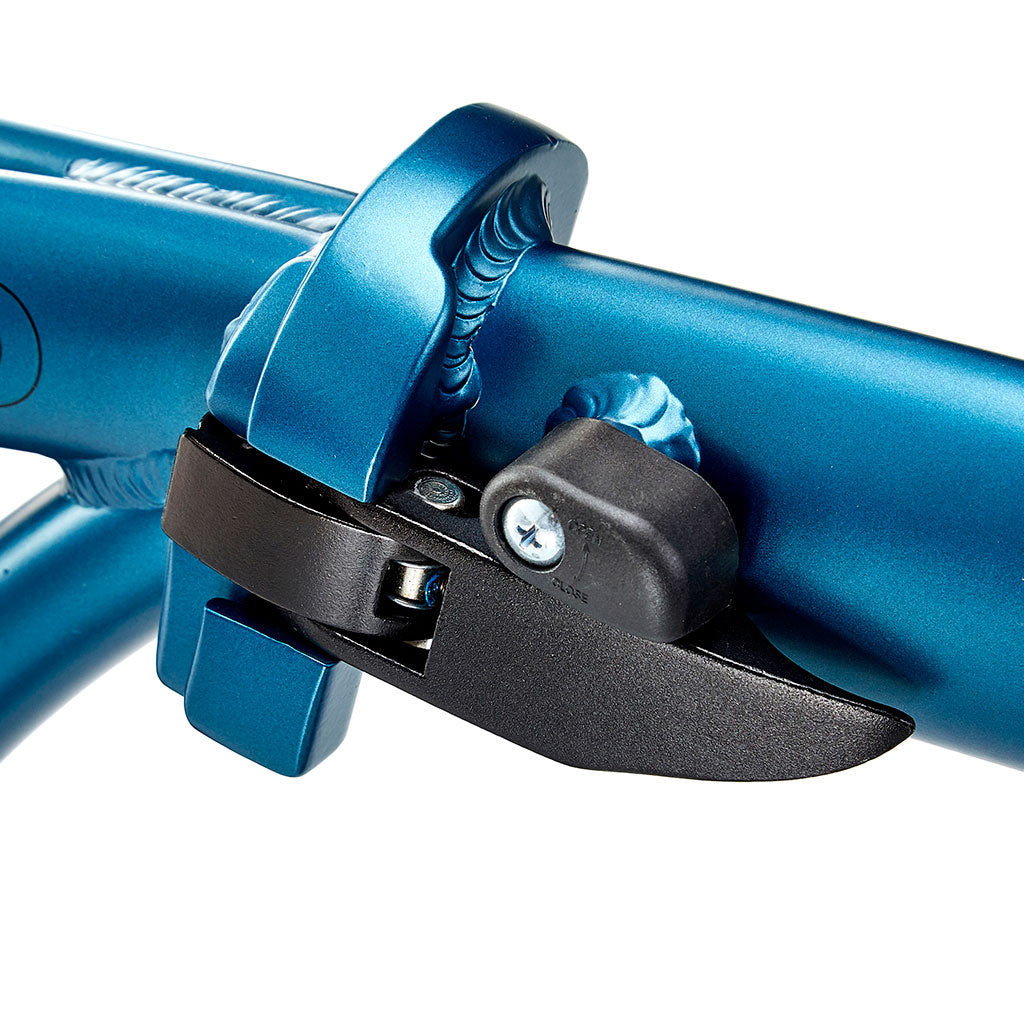

The Fold does as the name suggests. This nippy little e-bike has quick release mechanisms to fold the frame, the handlebar, and to lower the saddle, to bring this bike down to a tiny 83cm x 67cm x 47cm in 4 simple steps.

One of the lightest in it’s class, all the components on the Fold have been carefully selected for optimal performance and low weight.

Specifications :

Max Speed: 46 km/h (or 28 mph)

Electrics

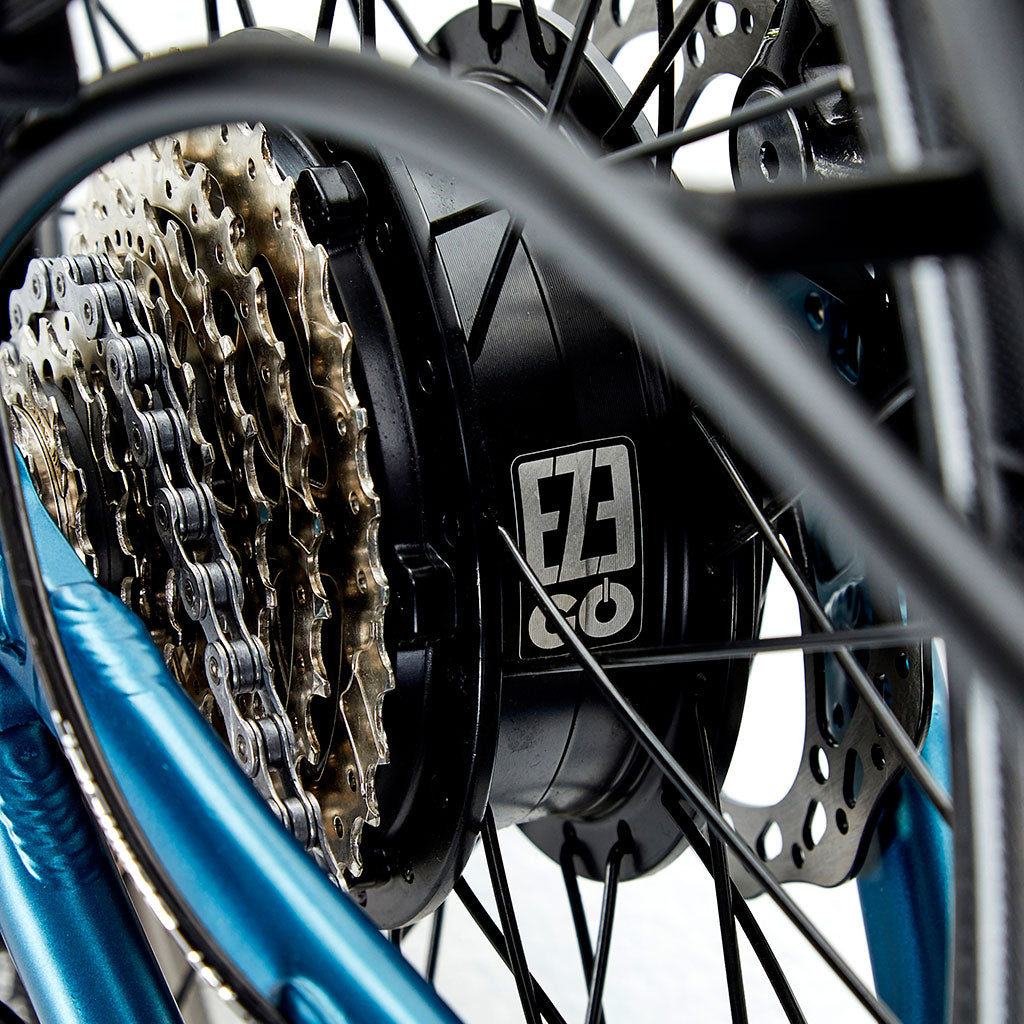

Motor: 250W 36V rear hub brushless gear drive
Torque: 45Nm regulated to 15.5 mph

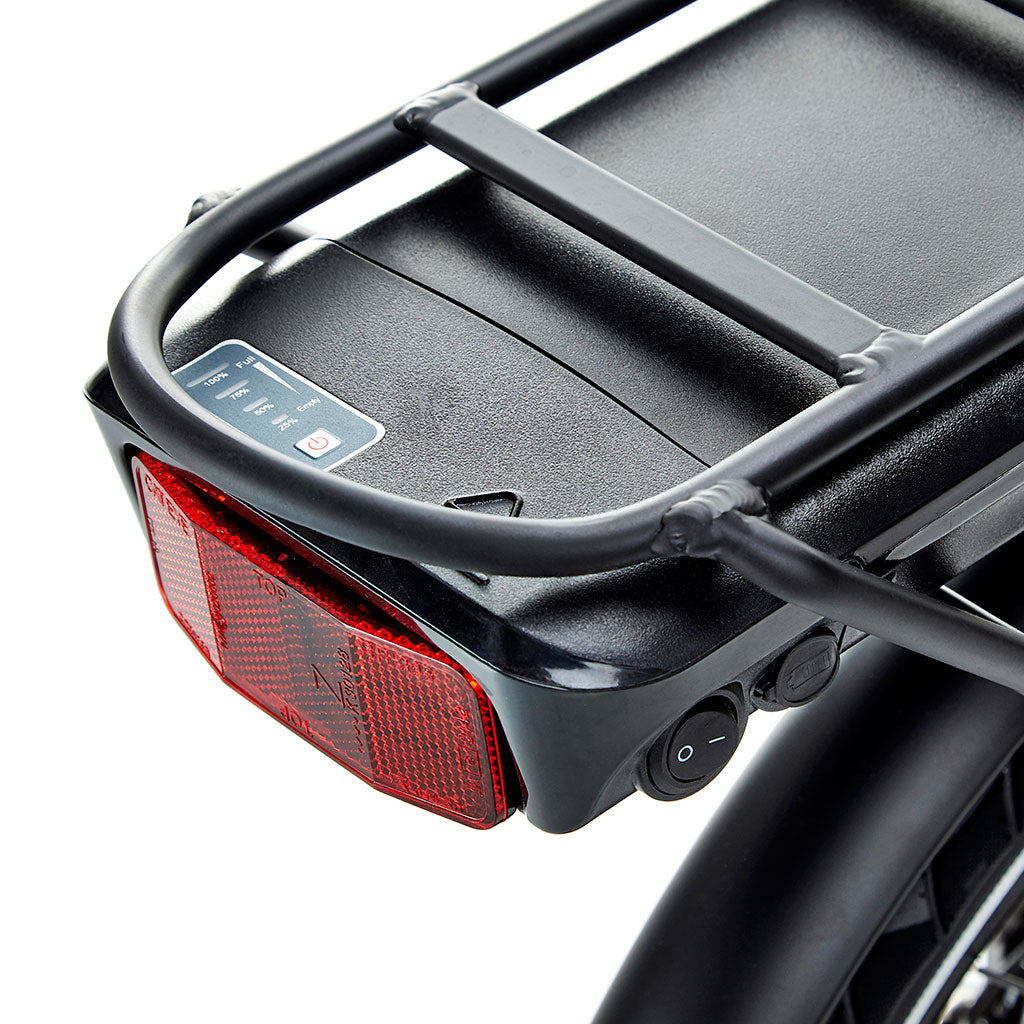

Battery: 374Wh (11.6Ah) or 460wh (12.8Ah) 36v with Samsung cells
Range: 30 miles (50km) based on average conditions
Controller: 540Wh (15Ah) 36v
Sensor: 12 magnetic point speed sensor

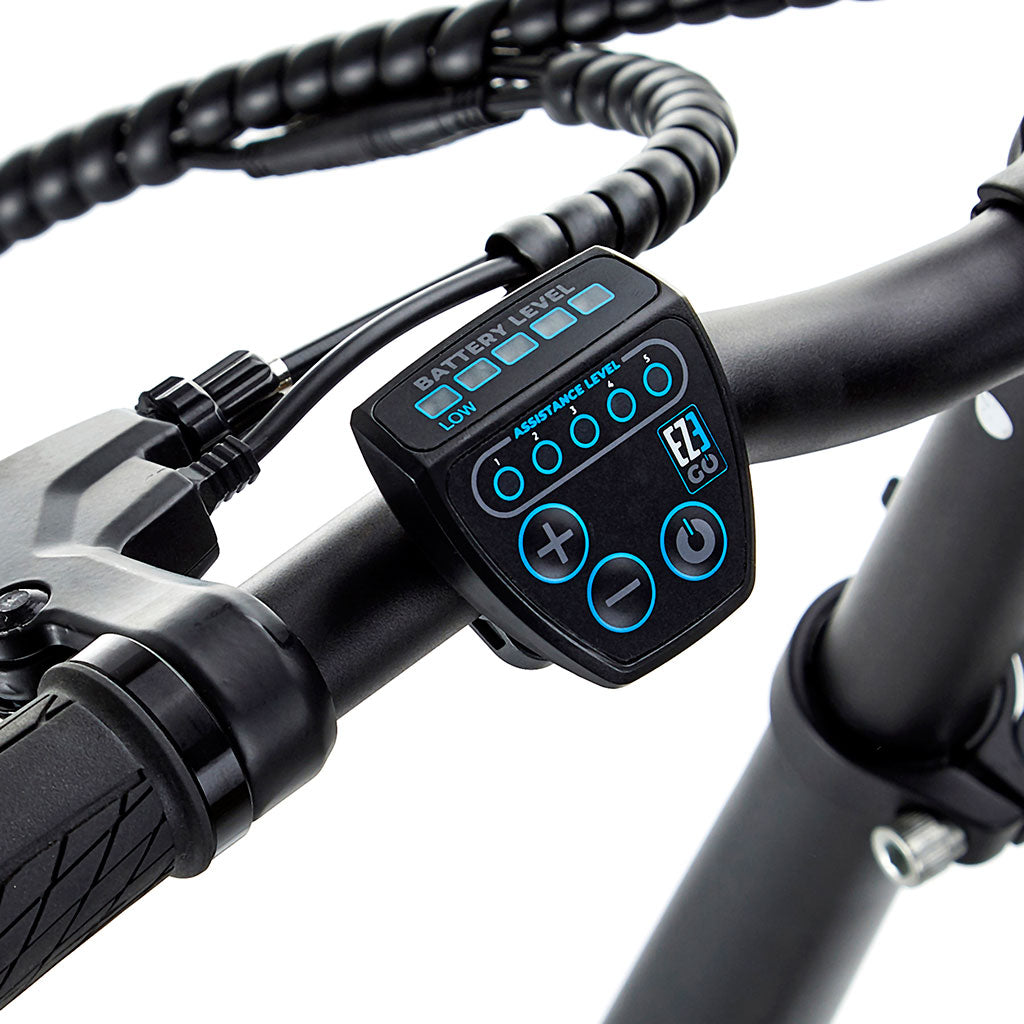

Display: 5 mode LED module with walk assist
Charger: 2Ah 36v smart charger - 4h charge time
Cable: Waterproof IP67 with quick connectors

Frameset

Frame: Alloy folding with internal cables
Fork: Alloy - lightset compatible
Sizes: 13”

Drivetrain

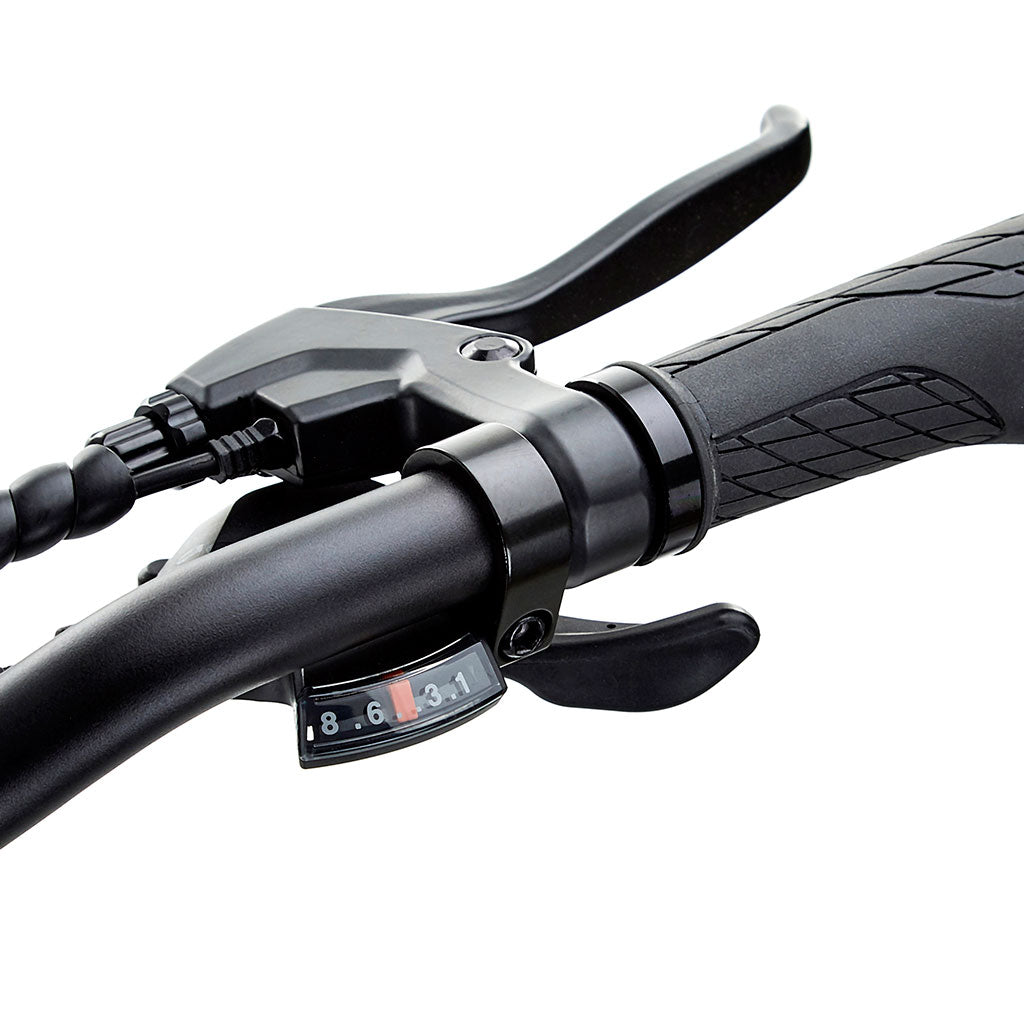

Shifters: Shimano ALTUS RapidFire Plus

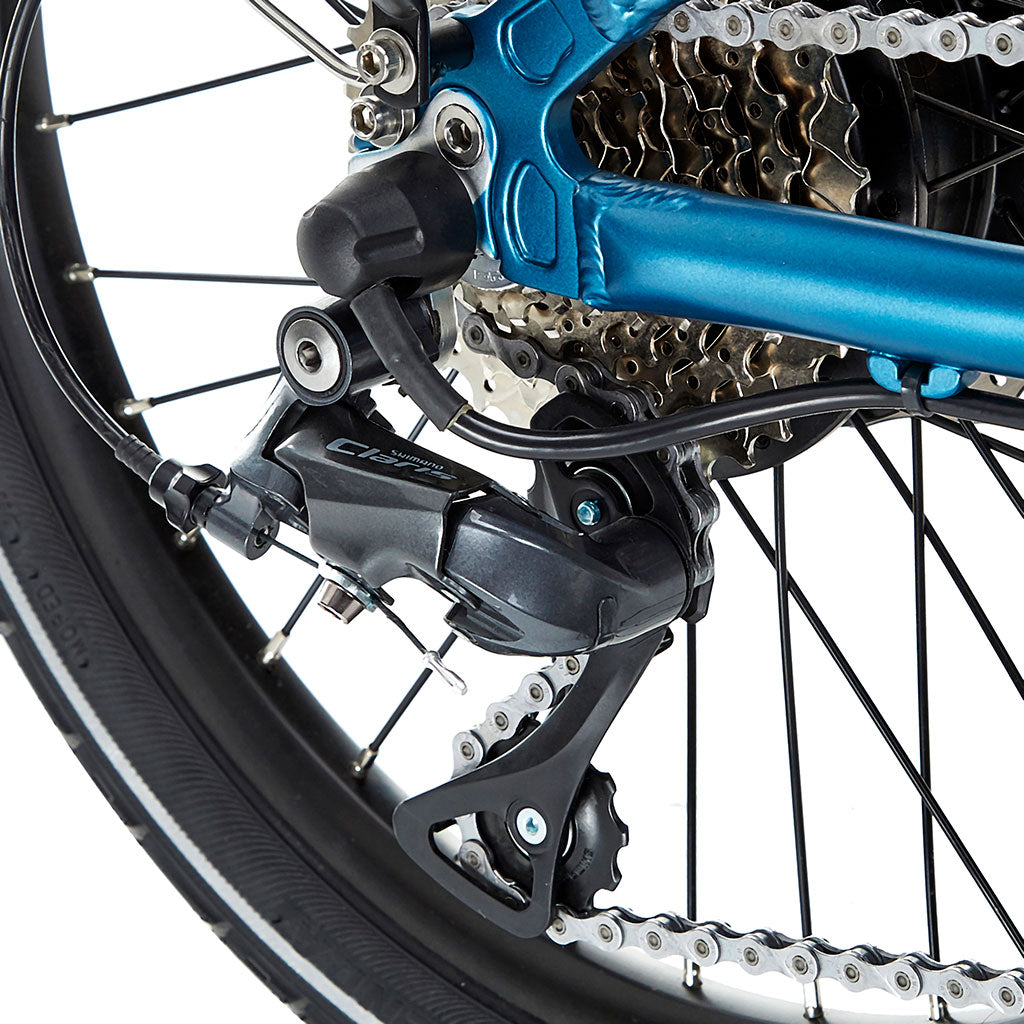

Rear Mech: Shimano CLARIS 8 Speed
Cassette: Shimano 11-34 tooth

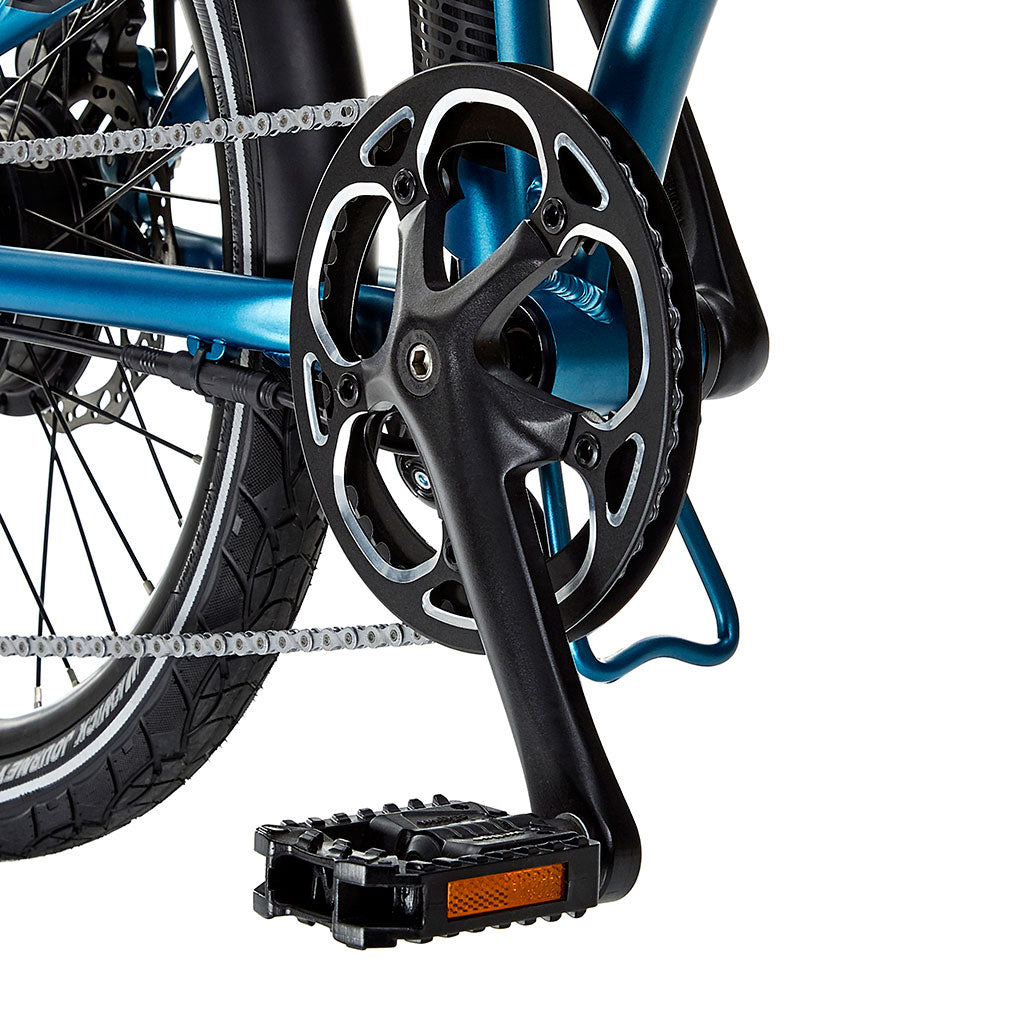

Chainset: Alloy 44 tooth 170mm with CNC finish

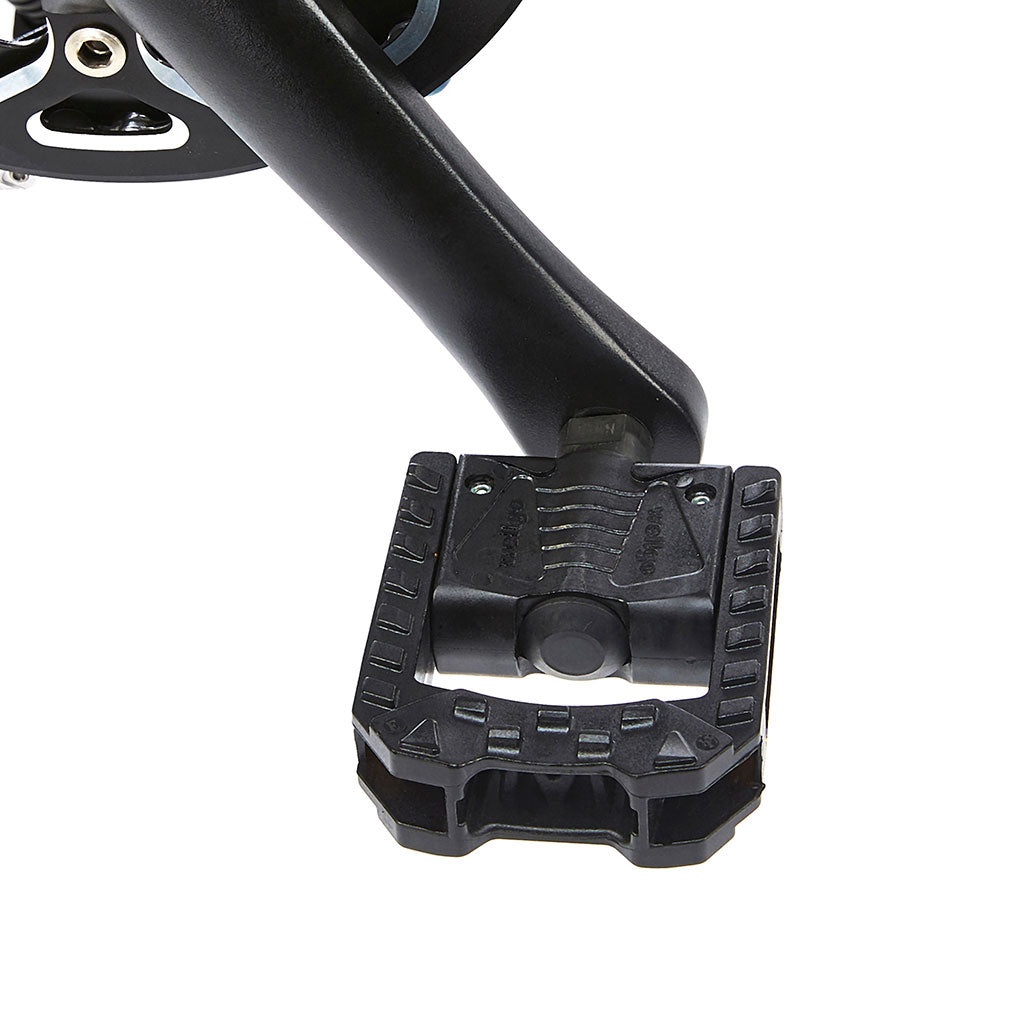

Pedals: Quick folding
BB: Sealed cartridge
Chain: KMC X8 anti-rust

Brakes

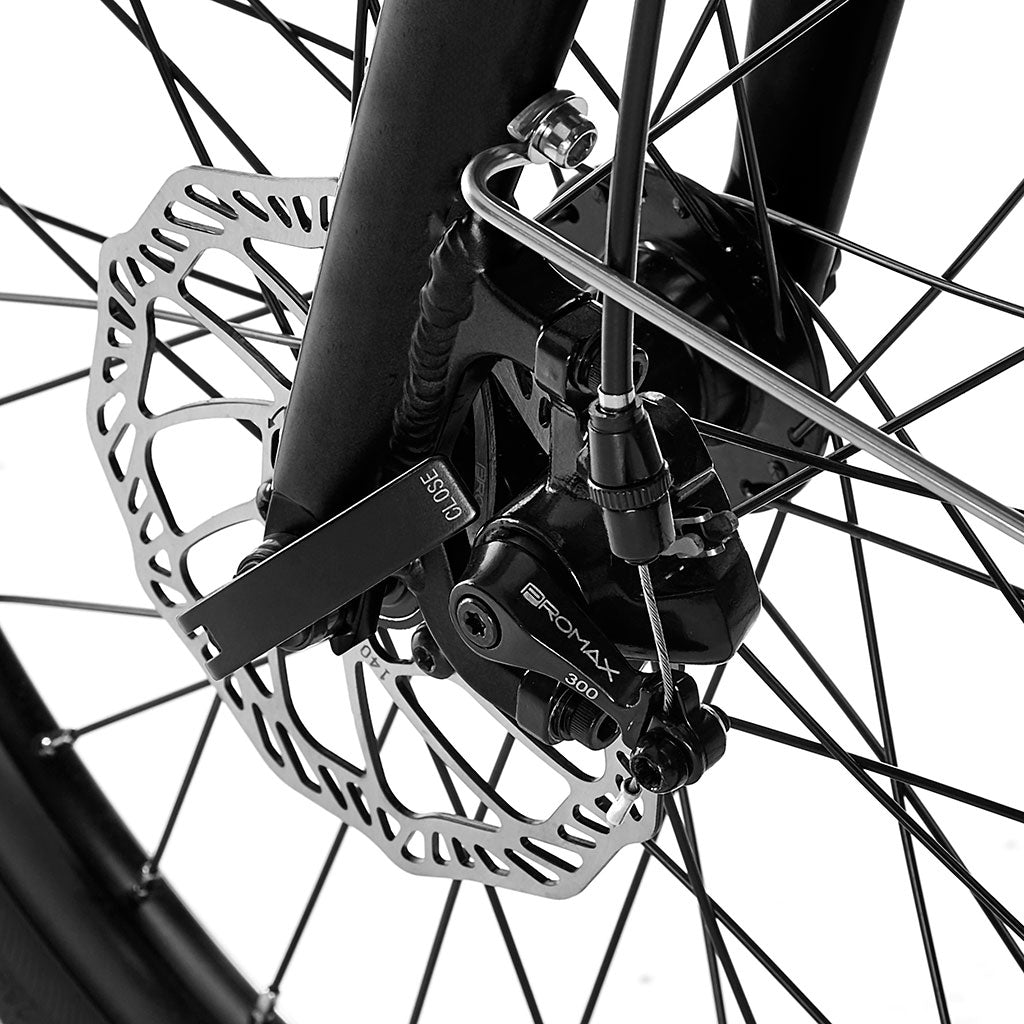

Calipers: Promax mechanical disc brakes
Levers: Alloy 3 finger with safety power cut-off
Rotors: 140mm front & 160mm rear

Wheels

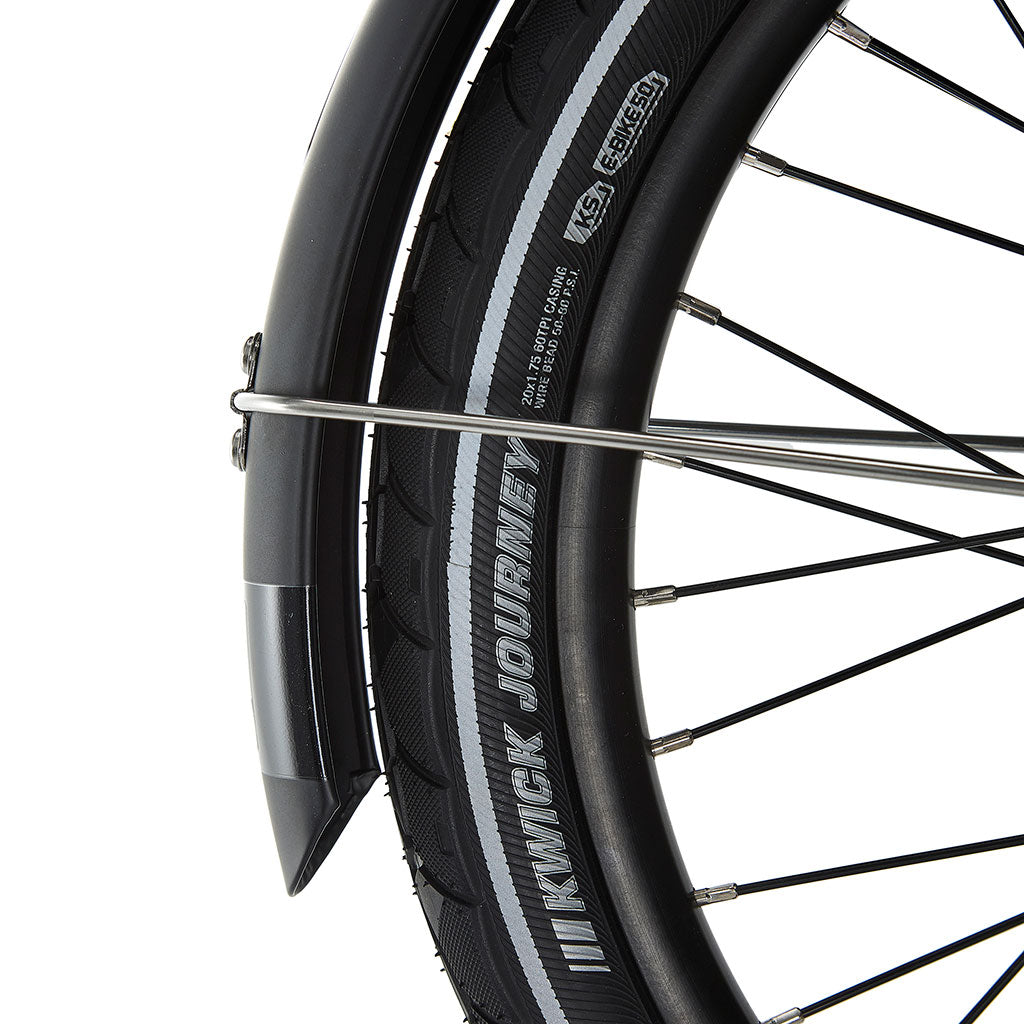

Tyres: Kenda Kwick Journey 20” x 1.75” puncture protect
Tubes: High pressure Presta valve
Rims: Alloy double wall 36 hole
Front Hub: Alloy quick release, sealed bearings
Spokes: Stainless with brass valve - 14G front / 13G rear

Components

Saddle: Velo sports urban
Seat Post: Alloy micro adjust 550mm
Seat Clamp: Alloy with quick release
Handlebar: Alloy 600mm - 25.4 bar bore

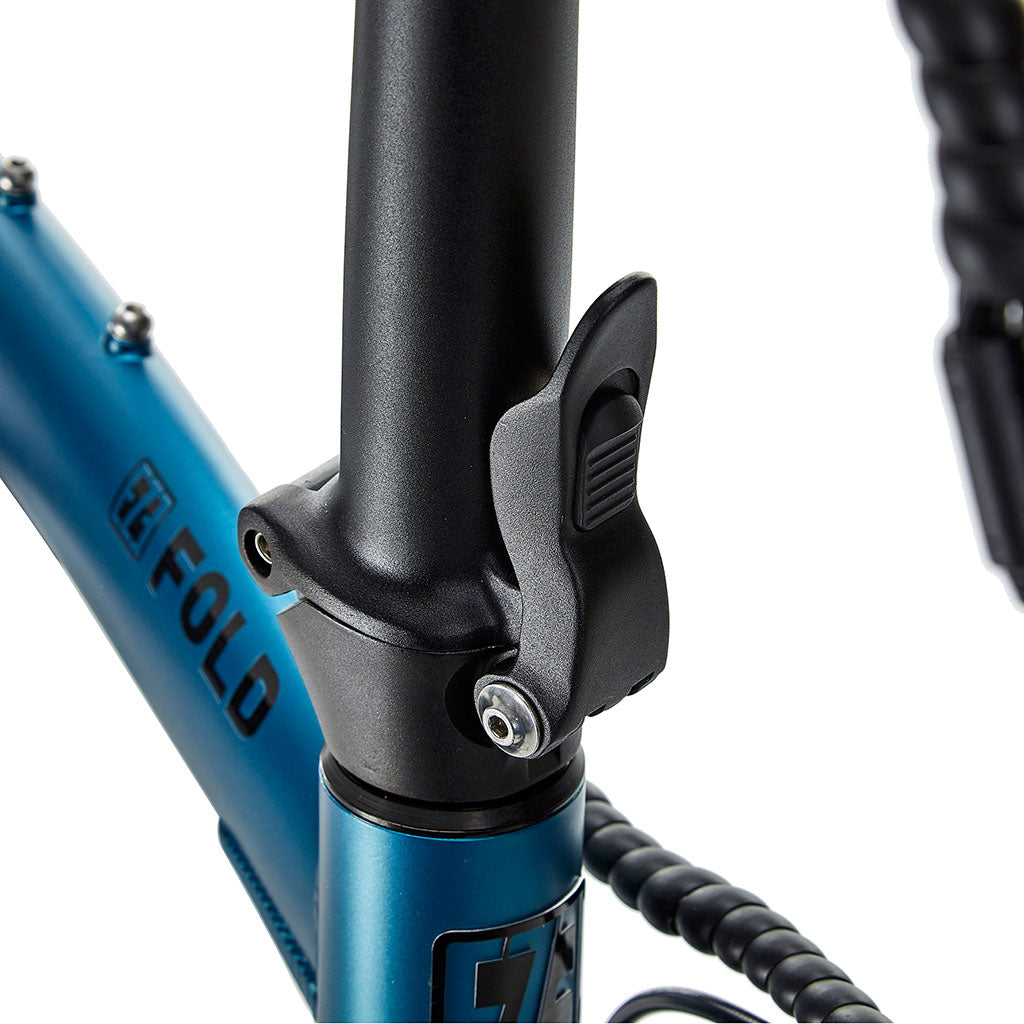

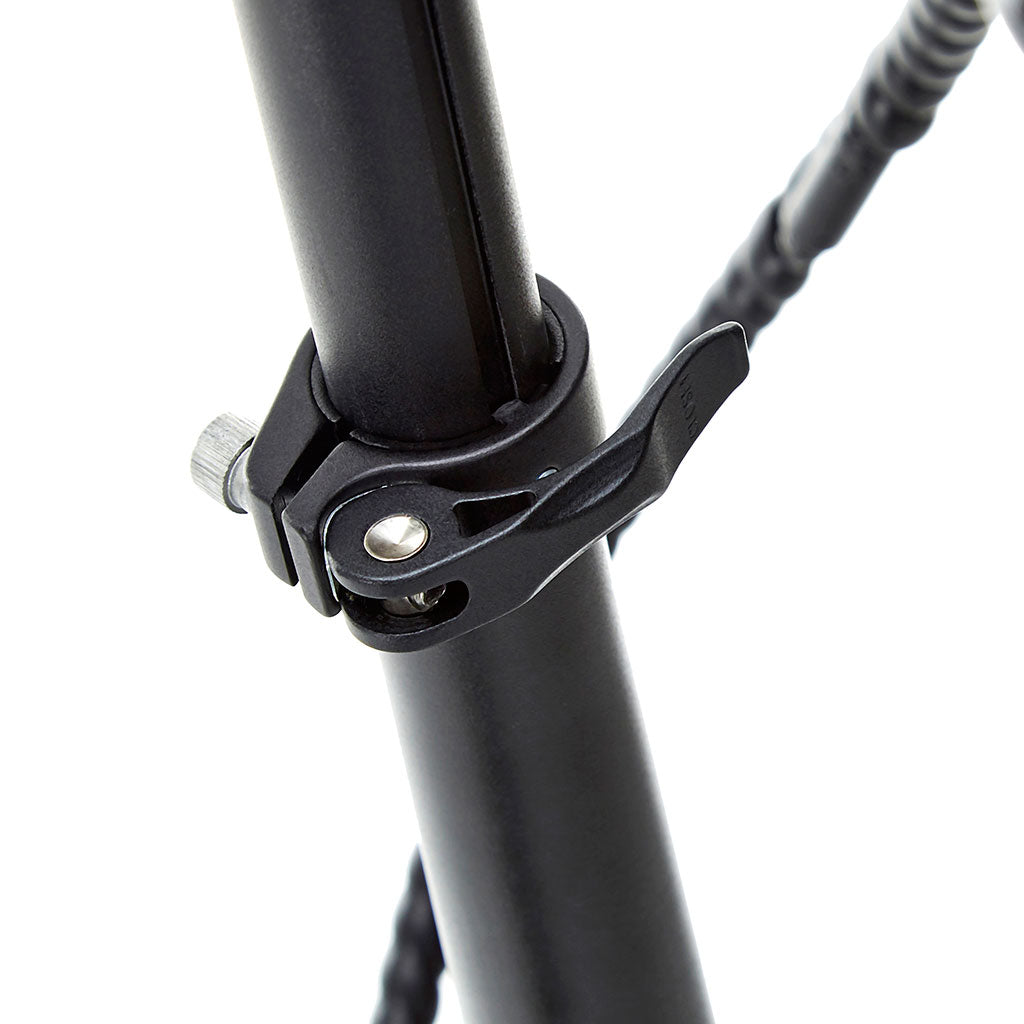

Stem: Alloy oversize telescopic folding
Grips: Velo double density Palmwing with lockrings
Headset: Alloy semi-integrated
Mudguards: Alloy with alloy stays
Rear Carrier: Alloy rear pannier with bungee straps
Kickstand: Alloy chain stay mounted

Weight

Battery: 3.5kgs
E-bike: 16kgs
Total: 19.5kgs

Warranty :
Battery    500 cycles (approx. 2 years)B54
Electrics    1 year
Components    1 year (except wear & tear items)

Delivery :

3-5 Days
