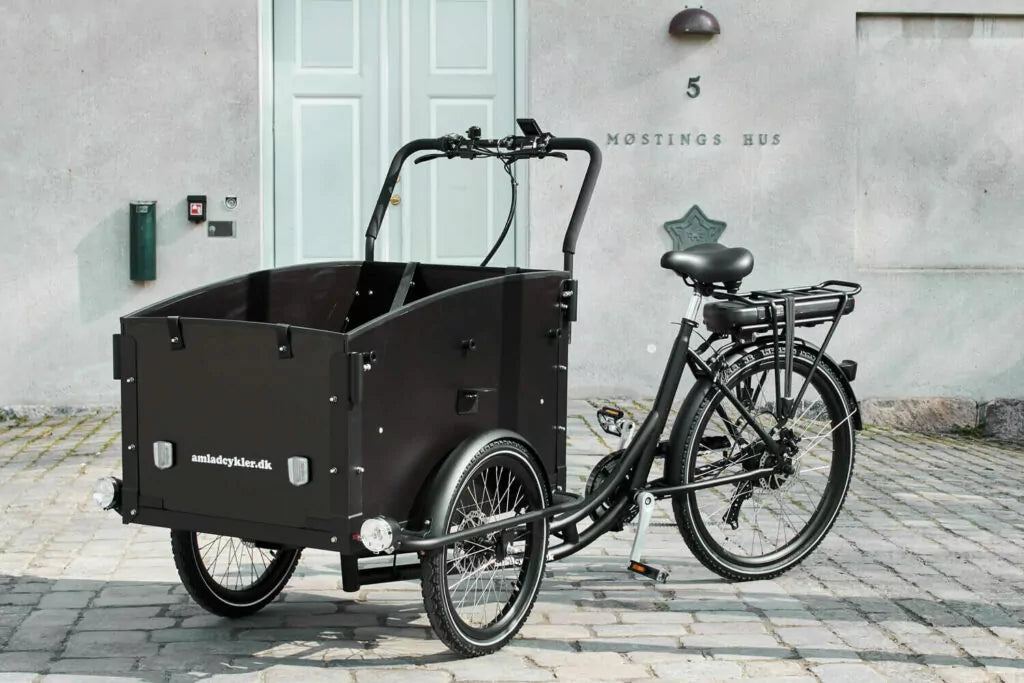

AMCargoBikes Ultimate Curve

The Ultimate Curve model is our absolute top model in “slim” design, matte black colour and with the newest Anti-Tilt steering system. It is of course made for short and long trips (we added the beast 13ah battery), but you can also enjoy your puncture-free tires on roads with gravel or through an urban environment. Like our other electric cargobike models, the Ultimate Curve model is extremely easy to learn to drive. A couple of good trips and you feel you’ve been driving a cargobike all your life. For our top model, we have also chosen the ultimate braking system. Our passion for cargobikes means that with our top model we put our soul in this project to make the bikes’ final touch perfect. With special hydraulic disc brakes, someone would say that it might be too good for a bike, but we do not agree! The system feels like butter when pushing to slowing down. To go further we also added electric brake system which sends a signal direct from the brakes to the motor to stop.

Handy!
Puncture resistant tyres
High-quality front- and rear fenders
Luggage rack with straps
Chain cover
Bell and several reflectors
2 x Powerful LED headlights and 1 x rear light
Safety belt for 4 children (Y safety belt)
Children’s bench for 4 children
Step board for children
Quick release saddle

Key Features:

Colour: Matte Black Frame (5 Treatments Containing: Paint, Lacquering, Antirust Treatment and Anti-Slip Seal)
Steering: Newest” Anti-Tilt” Patented Steering/Handlebar System with Self- Straightens Adjusting Function. Makes it Super Easy to Turn and Steer, Straightens Automatically
Display: Easy and User-Friendly COLOR Digital LCD Display with USB Charger Output
Frame: Anti-Tilt Patented Steering/Handlebar System with Self-Straightens Adjusting Function. Makes it Super Easy to Turn and Steer, Straightens Automatically.
Electronic “Walking mode”: Hold Down a Button on the Display and the Bike Drives up to 5km/h.
Motor: Powerful and Robust 250W Brushless Engine with Latest “Low-Energy Consumption & No Noise” Technology and Provides up to a Maximum of 25 km/h at the Highest Speed Level and of Course CE Approved.
Battery: 36V, 13 Ah Li-ion battery – 468WH – Anti-theft lock (CE, GS and TUV approved).
Charger: Intelligent TURBO charger, with reduced charging time and stops charging when the battery is fully charged, CE, GS & TÜV approved.
Gear: 7 External Shimano Tourney(SIS) Gear With Freewheel and a Shimano Front Gear Shifter.
Brakes: Tektro / Bengal Hydraulic Brakes with Electric Brake System + Parking Brake
Front wheels: 20″ Strong Anti-Puncture Kenda Tires with Reflection Line.
Back wheel: 26″ Strong Anti-Puncture Kenda Tire with Reflection Line.
Rims: Aluminum Wheels Heavy Duty Stainless Spokes.
Loading capacity: 150 kg.
Box dimensions: 91 x 59 cm. (L X W)
Weight: 47 kg.
Dimensions: 218 x 84 x 122cm. (L X W X H).

Please Note: All AMCargo models require a delivery time of 7 Working Days to allow for assembly.

Warranty - On purchase of this bike you will receive a 1 year warranty, covering both the frame and non-consumable parts. Any failing parts covered by the warranty will be replaced free of charge. Any parts provided do not include support or costs covered for labour to complete the repair.
